3dpac

What exactly is the 3dpac?

The 3dpac is a blister system developed by steripac for optimal position fixing of sensitive products within the sterile barrier.

How does the 3dpac work?

The 3dpac comprises three components:

• Outer sterile barrier (secondary blister)
• Inner sterile barrier (primary blister)
• Fixing inlay

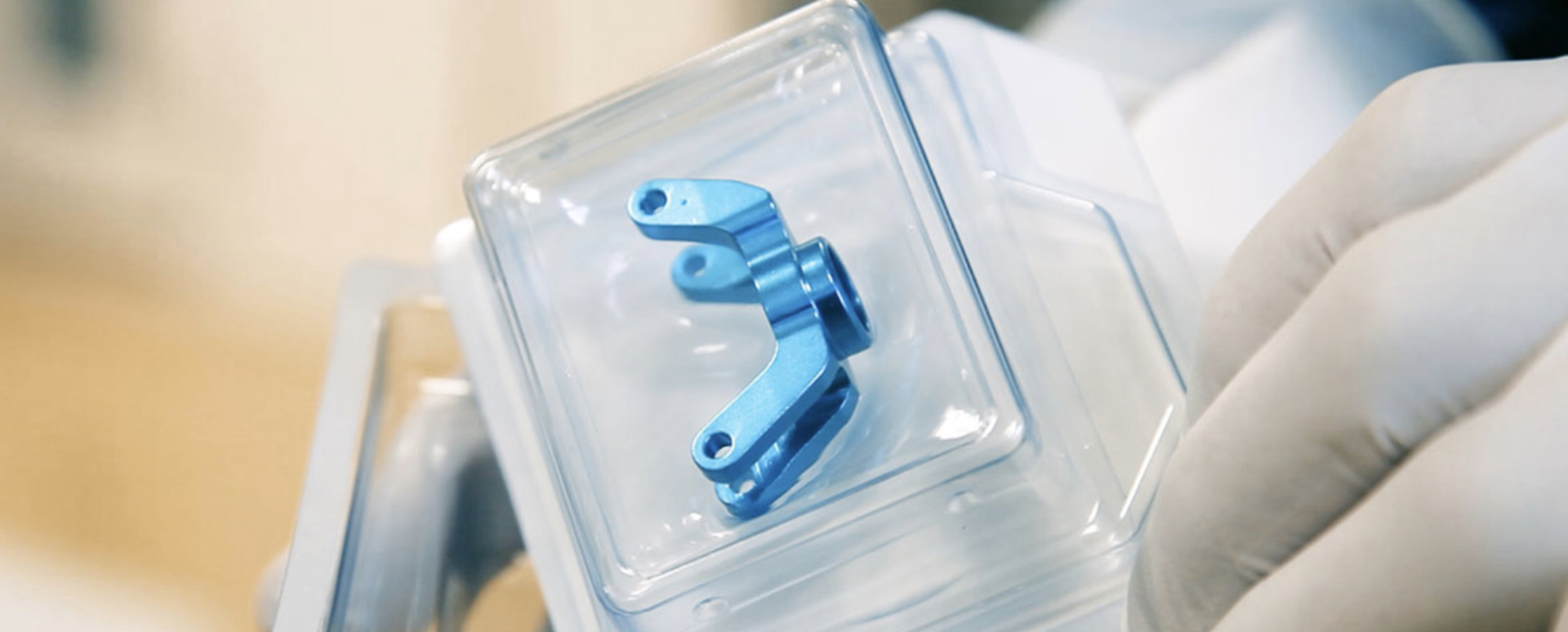

Your medical device is at the centre of the 3dpac. It is embedded within a thermally custom-shaped fixing inlay in the primary blister in a stable position. The fixing inlay is produced thermally during the packaging process. The moulding for this is the product already within the blister. That is why the inlay always encloses the product like a second skin and provides uncompromising safety.

Products can have different geometries and sizes in each individual packaging process. The fixing inlay is always individually thermally adapted to the product in question.

When removing the product, the user first removes the fixing inlay from the packaging. The actual medical device is easily accessible and intact within the primary blister.

For which products in particular is the 3dpac suitable?

For all highly sensitive medical products! The fixing inlay envelops the product in a tailor-made way, thus enabling movement- and abrasion-free storage in the blister.

The innovative blister design shows its particular strengths in products with a large number of variants in terms of sizes and geometries, as well as relatively small batch sizes

Examples of products with a large number of variants:

Generatively manufactured implants

• Spinal implants
• Screws
• Plates
